意大利 TOREX ILT 系列阻旋式料位开关采用铝合金外壳、不锈钢传动杆、 采用永磁同步电机( 1 转 / 分)、堵转不烧电机,是国际流行的旋转式信号转换装置, 具有技术先进、结构合理、性能可靠、安装简便、性价比高、抗震、防潮、耐高温、使用寿命长、信号准确、抗干扰能力强等特点,克服了电容感应式易误报、 印刷电路板(电子元件多的料位器)不耐震、不耐潮、易故障的缺陷。 ILT 系列阻旋式料位开关广泛应用于现代工业生产过程和仓储部门,可对容器内的粉状及颗粒状物料进行料位上、下限监测和控制;广泛应用于混凝土制作机械,饲料厂、食品厂、面粉厂等粮食加工机械,塑料加工及制药加工机械等场所,是物料监测和控制的理想选择。

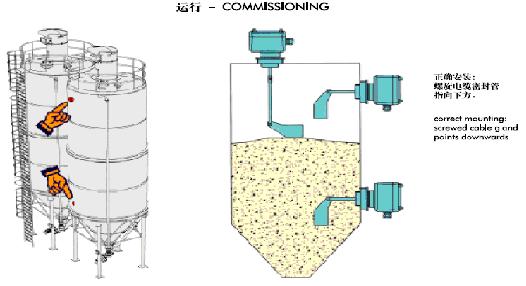

料位开关通常使用两种 , 一种用于最高料位 , 一种用于最低料位 . 它们通过焊接在料仓壁上的各种螺纹管 ( 标准型为 11/2") 来连接 .
Two types are commonly used,one for the maximun level and one for the minimun level,screwed into pipe unions,with different threads(std.11/2"gas)which are welded to the wall of the silo.They are supplied with voltages of 24/48v,110/230v,50/60Hz and 24 V DC
机械数据 Mechanical data
防护等级 enclosure |
IP65 |
连接 process connection |
螺纹 GI 1/2 〃及 G1/2 〃 thread 1/2 〃 andG1/2 〃 |
连接材料 material process |
塑料 plastic conection |
测量叶片和轴材料 material vane shaft and measuring vane |
不锈钢 stainless steel |
磨擦套管 friction clutch |
在浆片受到冲击时保护齿轮 protection of the gearing of impacts of the measuring vane |
信号延迟 pickup delay |
约 1.3 秒 opprox. 1.3 |
敏感性 sec sensitivity |
通过 3 个位置的弹簧力来调节 adjustable via reset force of spring in three positions |
浆叶转速 speed of measuring vane |
1.r.p.m. |
电气数据 Electrical data
电源 mains voltage |
115V/230V , 50-80Hz or 24V/48V , 50-60Hz or 24V DC 所有电压 +10%/-15%
115V/230V , 50-80Hz or 24V/48V , 50-60Hz or 24V DC oll votages +10%/-15% |
安装功率 installed load |
3 瓦 3VA (3W) |
接线 connection terminal |
1 × max. 1.5mm 2 |
螺蚊密封管 screwed cable gland |
塑料 1 × PG 13.5 〃 (1 ×已封法兰 PG 13.5 〃 )
1 × PG 13.5 〃 (1 × blank-off flange PG 13.5) plastic |
信号输出 signal output |
浮动式微型开关 floating microswitch |
交流 AC |
最大 250V , 2A , 500W ( cosα =1 ) max. 250V , 2A , 500W ( cosα=1 ) |
直流 DC |
最大 300V , 2A , 60W max. 300V , 2A , 60W |
接线图 connection diagram |
交流型:在印刷电路板上 AC version:on printed circuit
直流型:在盖子里面 DC version: inside the lid |
防护等级 protection class |
1 |
操作环境 Operating conditions
容器压力 container over-pressure |
max. 0.8 bar |
容器内部温度 temperature inside vessel |
-20 ℃ ~ +80 ℃ |
壳体所处环境温度
ambient temperature at the housing |
-20 ℃ ~ +70 ℃ |
|
